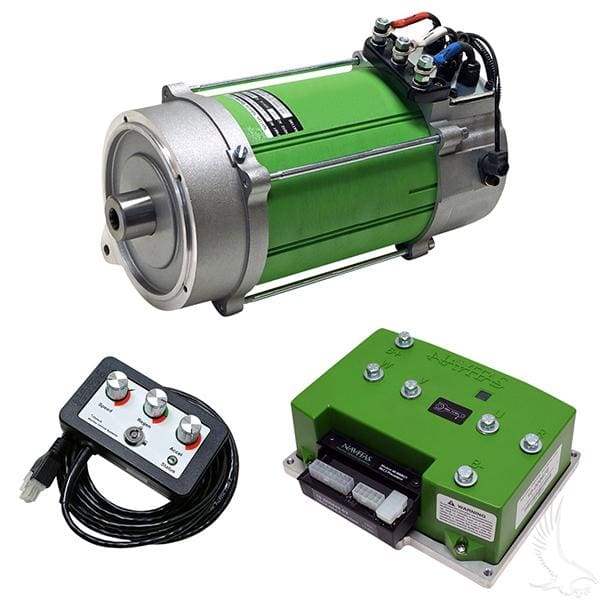

Navitas CLUB CAR 600A 5KW AC Conversion Kit & OTF Programmer

Give your Club Car the ultimate performance upgrade with a Navitas DC to AC conversion kit. The Navitas AC Conversion plug and play kit includes everything needed for an easy install resulting in increased speed, more torque and better acceleration. The On-The -Fly Programmer allows easy adjustment and lock-out of top speed, acceleration and regenerative braking. The Navitas Bluetooth enabled app allows for further adjustment as well as review of key diagnostic data.

Compatible with Club Car IQ (Precedent, Excel, Onward). Not compatible with SepEx2 carts.

What's Included

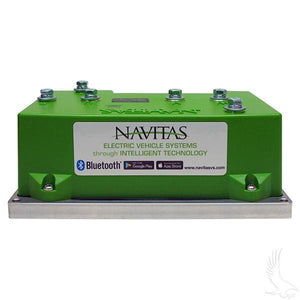

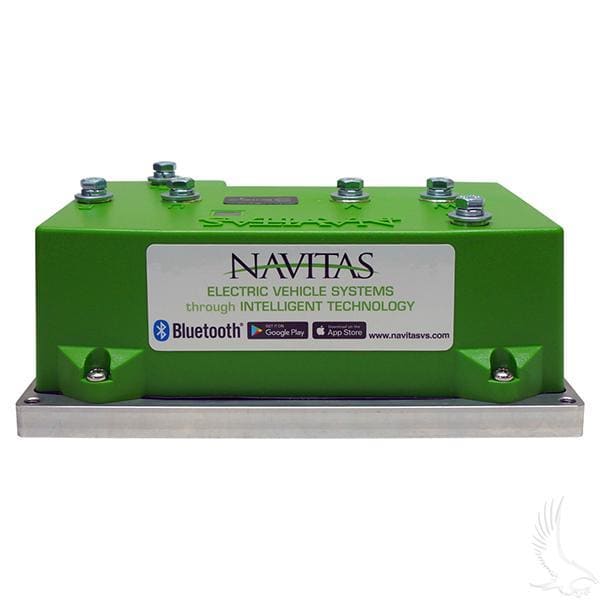

  • TAC2 Controller 600A with Bluetooth
  • TAC2 Club Car Curtis 1510/1515 Module (installed)

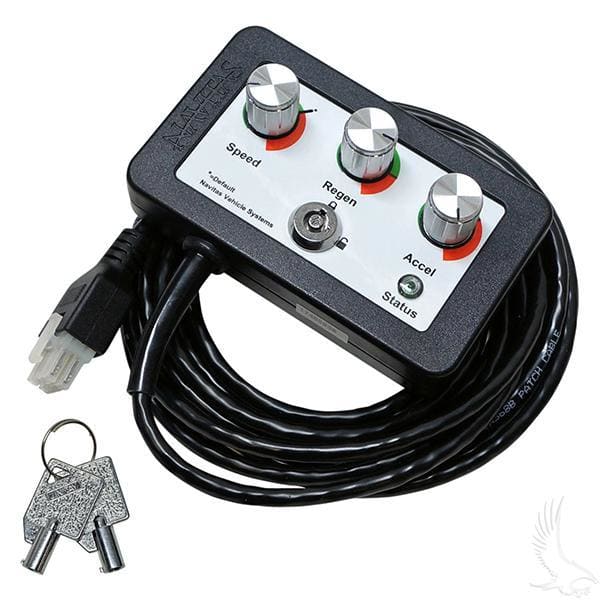

  • OTF1.0 Programmer (3.75m cable)

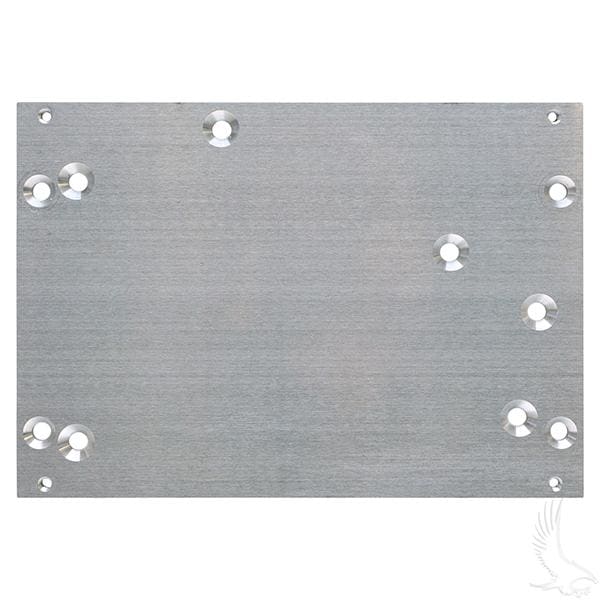

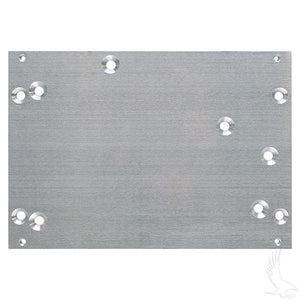

  • Hardware Mounting Kit
  • Navitas 5KW (10T) AC Motor

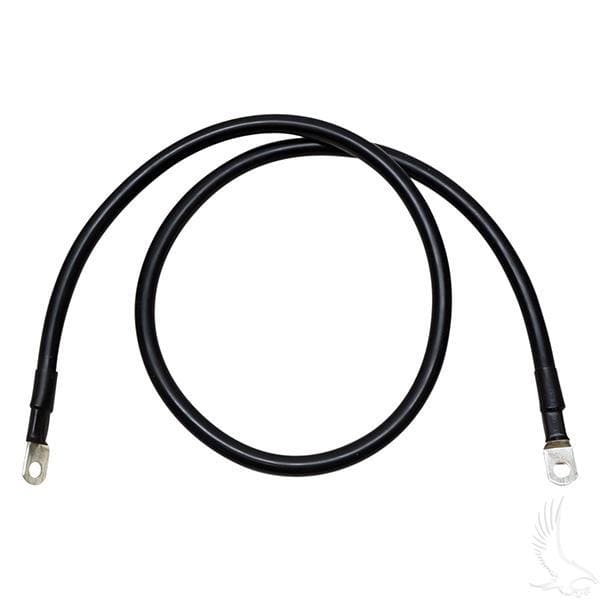

  • AC Motor Phase Cable
  • Motor Sensor Cable


Key Features

  • 600A state of the art Mosfet technology
  • Compact size and low weight
  • Regenerative braking
  • Molex waterproof connector
  • Thermal protection
  • Sensor less motor thermal protection
  • Under voltage protection
  • Fully sealed IP5X
  • A/B speed sensor inputs
  • OEM multi-platform mounting options
  • Plug & Play installation for major OEM golf cars
  • Rollback protection
  • Speed-limiting (w/ optional speed sensor)
  • Navitas On-The-Fly (OTF) programmer (included)
  • Hi Quality AC Induction Motor
  • External Speed Sensor
  • Internal Temperature Sensor
  • Steel and Aluminum Construction
  • High Torque with High Speed

Motor Data

  • Rated Power: 5KW
  • Rated Voltage: 34V (AC)
  • Rated Current: 113A
  • Rated Speed: 2785 r/min
  • Rated Frequency: 0~200 Hz
  • RPM: 0-5785 r/min
  • Splines: 10
  • Insulation Class: H
  • Protection Mode: IP44
