Navitas YAMAHA DRIVE 440A 4KW AC Conversion Kit & OTF Programmer

Give your Yamaha G29 Drive the ultimate performance upgrade with a Navitas DC to AC conversion kit. The Navitas AC Conversion plug and play kit includes everything needed for an easy install resulting in increased speed, more torque and better acceleration. The On-The -Fly Programmer allows easy adjustment and lock-out of top speed, acceleration and regenerative braking. The Navitas Bluetooth enabled app allows for further adjustment as well as review of key diagnostic data.

 Compatible with Yamaha G29 Drive & Drive2 carts.

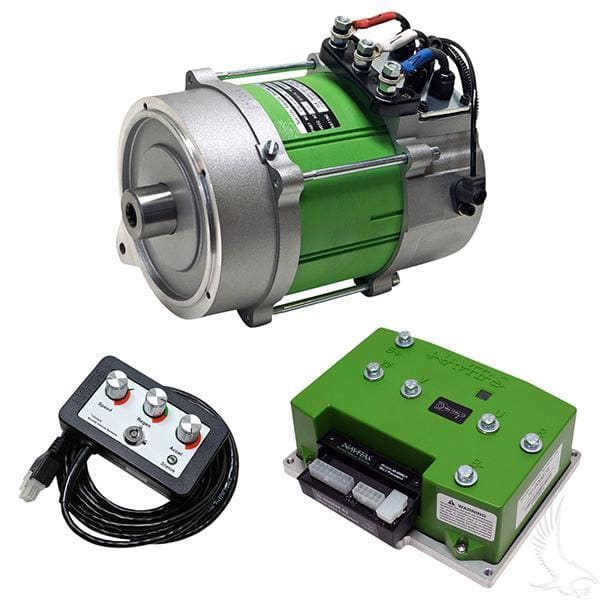

What's Included

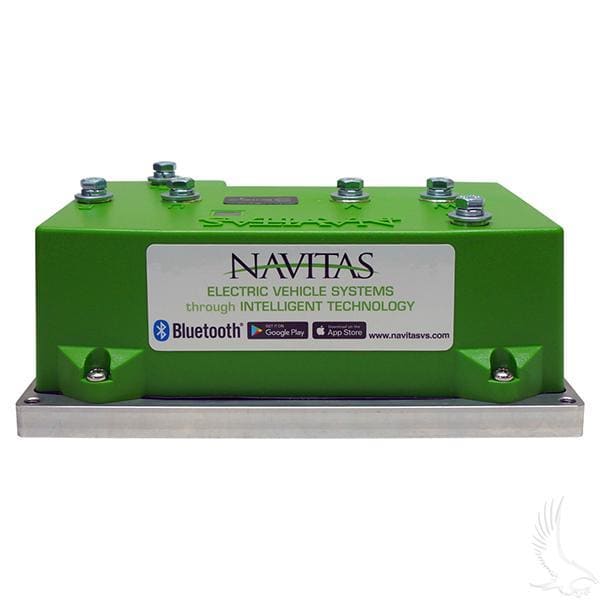

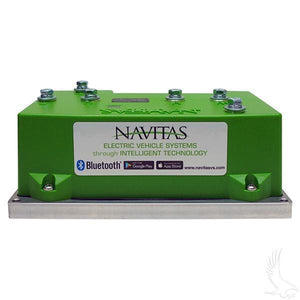

  • TAC2 Controller 440A with Bluetooth
  • TAC2 G29 Moric Module (installed)

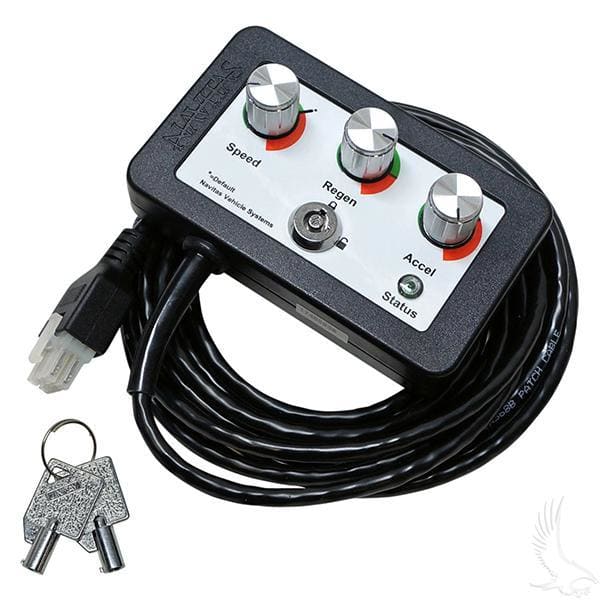

  • OTF1.0 Programmer (3.75m cable)

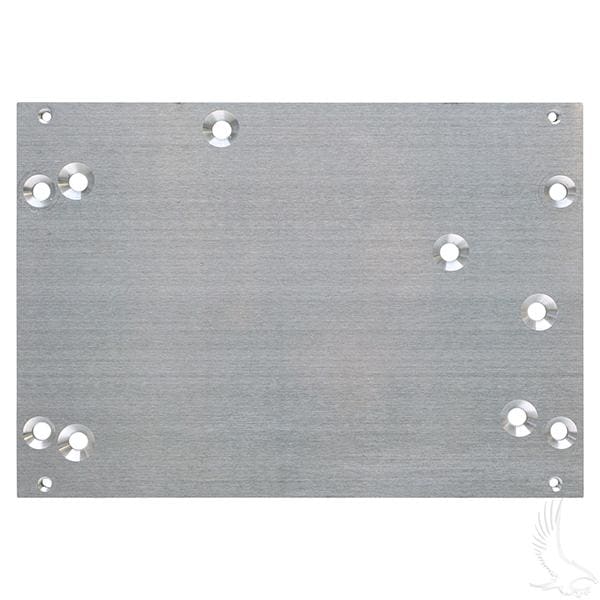

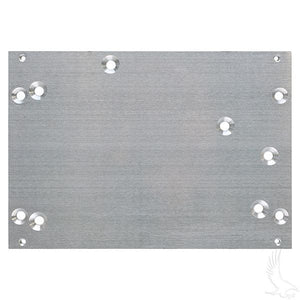

  • Hardware Mounting Kit
  • Navitas 4KW (19T) AC Motor

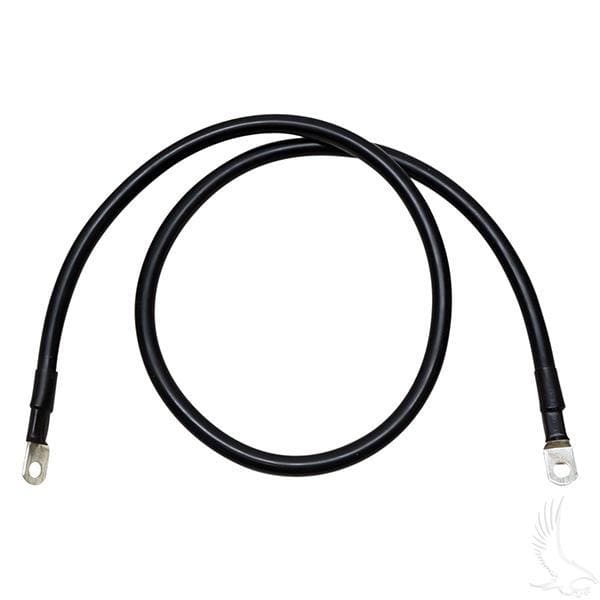

  • AC Motor Phase Cable
  • Motor Sensor Cable

Key Features

  • 440A state of the art Mosfet technology
  • Compact size and low weight
  • Regenerative braking
  • Molex waterproof connector
  • Thermal protection
  • Sensor less motor thermal protection
  • Under voltage protection
  • Fully sealed IP5X
  • A/B speed sensor inputs
  • OEM multi-platform mounting options
  • Plug & Play installation for major OEM golf cars
  • Rollback protection
  • Speed-limiting (w/ optional speed sensor)
  • Navitas On-The-Fly (OTF) programmer (included)
  • Hi Quality AC Induction Motor
  • External Speed Sensor
  • Internal Temperature Sensor
  • Steel and Aluminum Construction
  • High Torque with High Speed

Motor Data

  • Rated Power: 4KW
  • Rated Voltage: 34V (AC)
  • Rated Current: 91A
  • Rated Speed: 3600 r/min
  • Rated Frequency: 123 Hz
  • RPM: 0-6800 r/min
  • Splines: 19
  • Insulation Class: H
  • Protection Mode: IP44
